特色

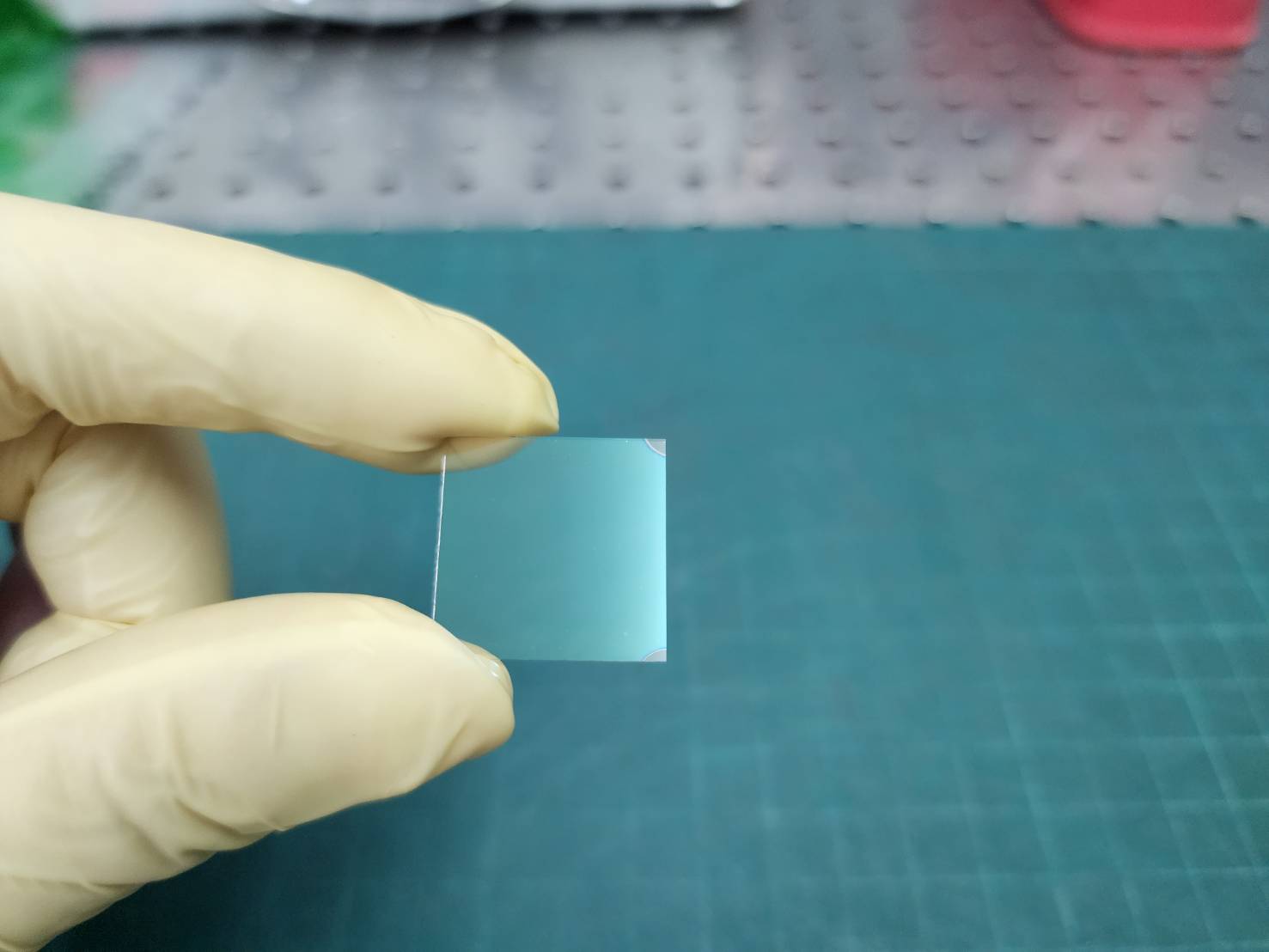

IMITO has a special coating that combines anti-reflection and conductivity.
A complete optical and electrical integration capability is required to make IMITO with high performance and low reflection.
A complete optical and electrical integration capability is required to make IMITO with high performance and low reflection.
Product Description
IMITO has a special coating that combines anti-reflection and conductivity.
Competitive advantages:
A complete optical and electrical integration capability is required to make IMITO with high performance and low reflection.
Applications:
‧ 3D image sensing
| Specification of Spectrum | ||||||
|---|---|---|---|---|---|---|
| WAVELENGTH (nm) | AOI=0 | AOI=30 | ||||
| 440~570 | Tavg ≧ 89% | |||||
| 645 ± 10 | T = 50% | |||||
| 710 ~ 780 | Tabs≦3% | |||||
| 700 ~ 760 | Tabs≦3% | |||||
| 850 | T≧90% | T≧70% | ||||
| 920 ~ 1000 | Tabs≦3% | |||||
| 930 ~ 1100 | Tabs≦3% | |||||
| Sheet resistance of IMITO | ITO thickness 20~25nm | ＜ 270 ohmn/□ | |||||||||
