BM 玻璃微結構
BM
BM詳細圖
BM詳細圖1
BM
BM詳細圖
BM詳細圖1
BM
特色
具有高遮光性且超低反射,可防止雜散光。

具有高遮光性且超低反射,可防止雜散光。

競爭優勢:
可以針對客戶需求採用不同的製造方式
1.蒸鍍
2.光阻塗布

產品應用:
‧相機模組

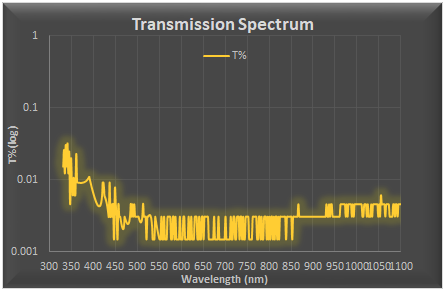

Specification Criteria
450~950nm Tmax (%) = 0%

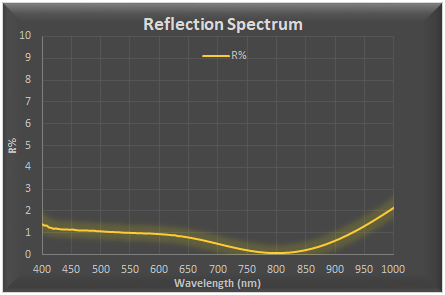

Specification Criteria
400~600nm Rabs (%) <   3.0%
450~950nm Ravg (%) <   3.0%
950~1000nm Rabs (%) <   7.0%
